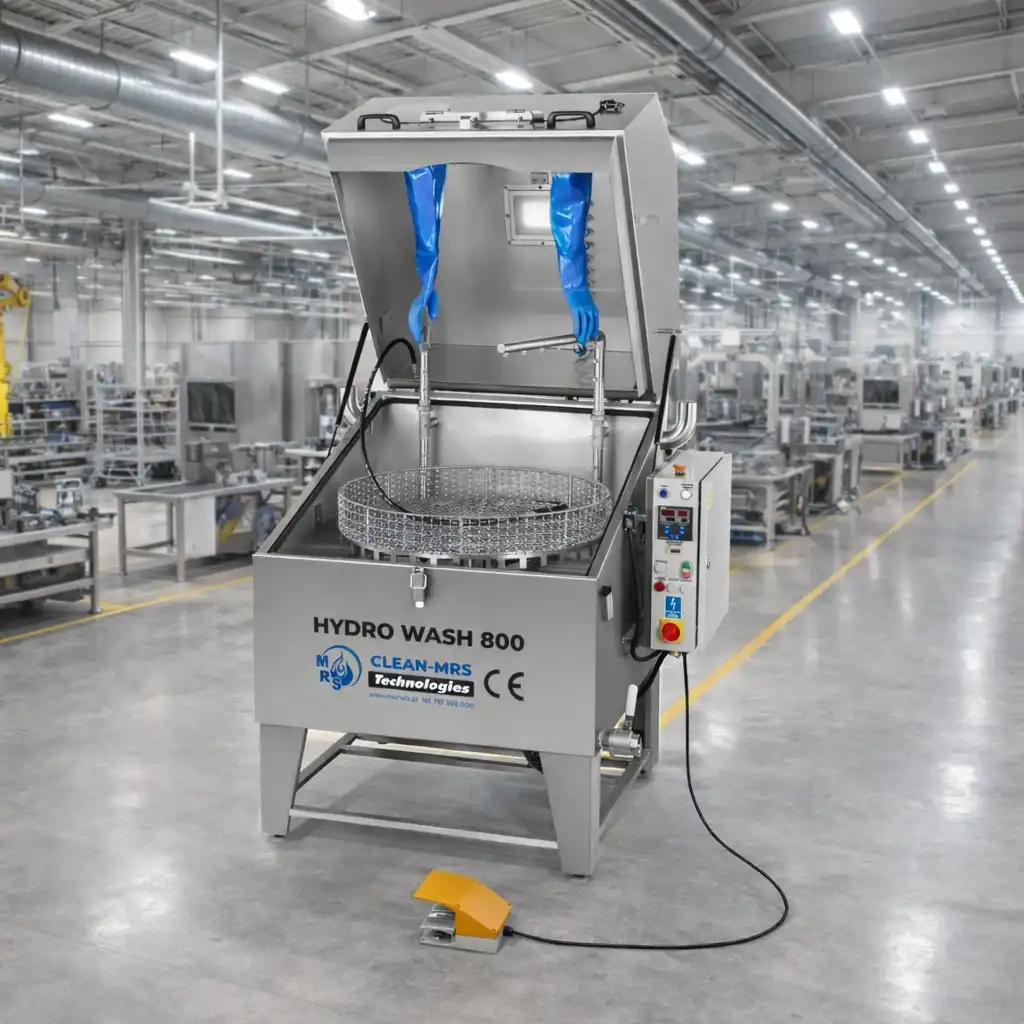

Automatic Basket Washer 2w1 HYDRO WASH 800

€12,300.00

Quantity

szt.

Availability:

Low stock

Shipping time: estimated delivery in order confirmation

Shipping

from €0.00 - Delivery costs on request. (Austria)

Ask about the product

Opis

The automatic Basket Washer Hydro-Wash 800 2in1 - catalog number 2000218 - cleaning system is a multifunctional unit that enables fully automatic parts cleaning in an engine-driven rotary basket or, for more complex shapes, a high-pressure wash at 140 bar. Thanks to this combination of processes, the system can be used in any workshop. It effectively streamlines operations in businesses that refurbish turbochargers, steering racks, and gearboxes. To ensure user safety and stable cleaning parameters, it is equipped with an electronic control panel and a series of integrated sensors.

Standard Equipment

Lid-open sensor (shuts off if opened during wash)
Tank-level sensor (dry-run protection)
Fluid-temperature sensor
Adjustable spray arms with stainless-steel nozzles by Spraying Systems
Motor-driven rotary basket
High-pressure pump (140 bar)
Compressed-air gun
Pressure reducer with water separator
Coarse filter for insoluble contaminants (0.8 mm stainless-steel mesh)
Fine filter for small particles
Adjustable leveling feet
Drain valve
Pneumatic actuators

Technical Data:
Basket diameter: 800 mm
Working height: 500 mm
Basket load capacity: 300 kg
Programmable cycle time: 0–99min
Cleaning temperature: 60 °C
Heater power: 9 kW
Tank capacity: 200 L
Spray flow rate: 200 L/min
Spray operating pressure: 4.5–6 bar
Manual-wash pressure: 140 bar
Overall width: 1350 mm
Overall depth: 1350 mm
Overall height: 1750 mm / 2250 mm
Power supply: 3\~ 400V

Optional Accessories:
Belt oil separator
Low-pressure lance set
Reinforced pump
Pneumatic actuators
